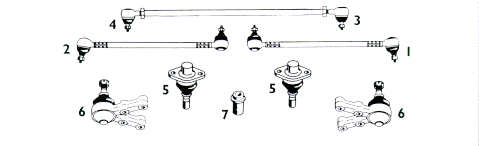

Přední náprava Volvo Amazon (120) ~ 1970

Pic.
 Detail Year O/E Ref Art No
1
 Tie rod Right
--
658597 85.139
2
 Tie rod Left
--
 658596 85.140
3
 Tie rod end Right
--
 658432 85.342
4
 Tie rod end Left
--
 658431 85.343
5
 Ball joint upper R/L
1966~
 273030 85.658
6
 Ball joint lower R/L
--
 273038 85.659
7
 Idler arm bushing
--
 671444 85.857
--
 Bushing for lower controlarm
--
 663675 85.817
--
 Bushing for anti-roll bar
--
 83125 85.828
--
 Bushing
--
87033 85.813
--
 Rubber cushion (damper) f. lower controlarm R/L
--
 675253 85.894
Zadní náprava Volvo Amazon (120) ~1970



Pic. Detail Year O/E Ref Art No
1 Controlarm R with bushing 85.856 ~1966 653443 85.855
1 Controlarm L with bushing 85.856 ~1966 653442 85.854
2 Bushing for controlarm ~1966 653461 85.856
3 Bushing for controlarm 1967~ 672226 85.823
4 Bushing for controlarm 1967~ 676914 85.858
5 Bushing for support bar ~1968 672226 85.823
5 Bushing for support bar 1968~ 678790 85.826
6 Bushing for cross bar   87033 85.813
7 Bushing for controlarm   663972 85.972
8 Oil Seal for rear axle 120, 140, 160, 200, 700, 900 All mod.   9143317 (942905) 12.3317

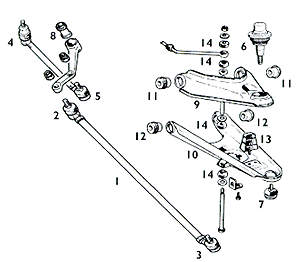

Přední náprava 142/144/145 1967~74, 164 1967~75



Pic. Detail O/E Ref Art No
1 Tie rod center ~1972, complete 678929 85.144
1 Tie rod center 1973~, complete 1212417 85.147
2 Tie rod end f. center tie rod Right 679291 85.344
3 Tie rod end f. center tie rod Left 679290 85.345
4 Tie rod 1969 ~, Right 1206232 85.142
5 Tie rod 1969 ~ Left 1206231 85.143
6 Ball joint upper R/L 1970~74 686938 85.662
7 Ball joint lower 1967 ~,R/L 683303 85.661
8 Bushing 671444 85.857
9 Controlarm upper R/L 688021 85.699
10 Controlarm lower complete Right 684768 85.702
10 Controlarm lower complete Left 684767 85.703
11 Controlarm bushing upper R/L 675432 85.816
12 Controlarm bushing lower ~1969 R/L 663675 85.817
12 Controlarm bushing lower 1970~. R/L 683267 85.818
13 Rubber cushion (damper) f. lower controlarm R/L 675253 85.894
14 Bushing for front stabilizer R/L 83125 85.828
15 Shock absorber bushing 85567 85.909

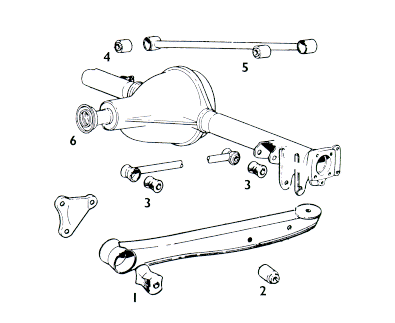

Zadní náprava 142/144/145 1967~74, 164 1967~76



Pic. Detail O/E Ref Art No
1 Support arm bushing front 140 R/L 676914 85.858
1 Support arm bushing front 164 R/L 678887 85.825
2 Support arm bushing rear R/L 675778 85.865
3 Support bar bushing ~1968 R/L 672226 85.823
3 Support bar bushing 1968 ~ R/L 678790 85.826
4 Crossbar bushing Right 1330427(675807) 85.820
5 Crossbar bushing ~1973 Left 672226 85.823
5 Crossbar bushing 1974 Left 1330973(1229715) 85.821
6 Oil Seal Rear Axle 120, 140, 160, 200, 700, 900 All mod. 9143317(942905) 12.3317

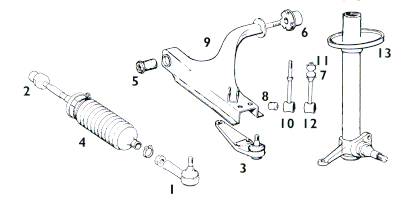

Přední náprava 240, 260 všechny modely

1

2

3

4

5

6

7

8

9

10

12

13

11

Pic. Detail O/E Ref. Art. No.
1 Tie rod end outer R/L 3516944 (1205658) 85.348
2 Tie rod end outer R/L, 75-84, thread 14mm 3530167 (1228386) 85.167
2 Tie rod end outer R/L, 75-78, cam PS, inside thread 1205666 85.350
2 Tie rod end outer R/L, 79-87, cam PS, indide thread 1272947 85.168
2 Tie rod end outer R/L, 75-84, cam, inside thread 1205659 85.349
2 Tie rod end outer R/L, 85-93, cam PS, outside thread 9140505 (1387451) 85.505
3 Ball joint lower manual steering R/L 274117 (1330819) 85.663
3 Ball joint lower right, PS 274119 (1330821) 85.664
3 Ball joint lower left, PS 274118 (1330820) 85.665
4 Boot kit for cam rack and pinion R/L, PS 271545 (1205662) 85.923
4 Boot kit for cam rack and pinion Right, PS 270882 (271542) 85.905
4 Boot kit for cam rack and pinion Left, PS 270881 (271544) 85.904
4 Boot kit for ZF rack and pinion R/L 1228425 85.922
4 Boot kit for cam rack and pinion Left w/o PS 271541 (1205652) 85.911
4 Boot kit for cam rack and pinion Right w/o PS 271543 (1205653) 85.910
4 Boot kit for cam rack and pinion R/L, PS 270597 85.0597
5 Bushing front for lower control arm R/L 1205825 85.866
6 Bushing rear for lower control arm Right 1273778 85.831
6 Bushing rear for lower control arm Left 1359812 85.830
7 Bushing upper for front stabilizer R/L 1205991 85.829
8 Bushing lower for front stabilizer R/L 1205926 85.864
9 Control arm lower Right 1205686 85.713
9 Control arm lower Left 1205680 85.714
10 Rod complete with bushing 85.864 R/L 1206667 85.901
11 Washer for 85.901 R/L 1229303 85.901W
12 Rod compl. - 85.901,85.864,2x 85.829, 2x 85.901   85.901.1
13 Spring retainer R/L 274100 30.001
Zadní náprava 240, 260 všechny modely

1



2

3

4

5

6

7

8

9

10

Pic. Detail O/E Ref. Art. No.
1 Oil Seal Rear Axle 120, 140, 200, 700, 900 All models 91143317(942905) 12.3317
2 Bushing rear for support arm R/L 1229165(1229628) 85.868
3 Bushing front for support arm R/L 1229714 85.867
4 Bushing for crossbar Right 1330427(675807) 85.820
5 Bushing for crossbar Left 1330973(1229715) 85.821
6 Bushing for supportbar R/L (fits supportbar 1205797) 1272603 85.819
7 Bushing for supportbar R/L (fits supportbar 1273621) 1273622 85.822
8 Supportarm R/L 1272347(1272361) 85.005
9 Spring seat R/L 1221882 30.002
10 Attaching washer R/L 1206811 30.003

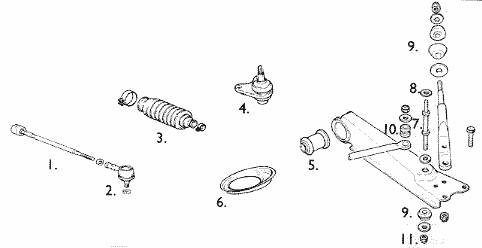

Přední náprava 300, všechny modely 1976 ~ 89



Pic. Detail Oe. ref Art. no
1 Tie rod 343/345 R/L w/o P.S outside tread 3268829 85.134
1 Tie rod 340/360 R/L w/o P.S inside tread 3293736 85.172
1 Tie rod R/L PS 3343464 85.3464
2 Tie rod end, outer R/L 3211955 (3265974) 85.341
3 Boot kit for tie rod Right 3343641 (3268835) 85.917
3 Boot kit for tie rod Left 3343642 (3268834) 85.918
3 Boot kit PS 3343436 85.3436
4 Ball joint, lower R/L 3211956 85.656
5 Bushing for upper control arm 3290010 85.0010
6 Spring retainer lower R/L 30.005
7 Rod, spacer bolt 3291539 85.1539
8 Washer for rod 3104012 85.4012
9 Bushing for rod 3291540 85.1540
10 Bushing for rod 3101159 85.1159
11 Luck nut for rod 948645 85.8645
  CV-boot, outer and inner 3103799 85.3799

Manžety řízení
Model Remarks Make Year O/E Ref. Art. no
240, 260 w/o PS R/L ZF 75- 1228425 85.922
  w/o PS Right CAM   271543 (1205653) 85.910
  w/o PS Left CAM   271541 (1205652) 85.911
  PS, R/L, rack mark: 1205660,1228967,1229322 CAM   271545 85.923
  PS, Left, rack mark: 1272460,1273236,1329998 CAM   270881 85.904
  PS, Right, rack mark: 1272460,1273236,1329998 CAM   270882 85.905
  PS, R/L, rack mark: 1359900 CAM   270597 85.0597
300 w/o/ PS Right     3343641 85.917
  w/o/ PS Left     3343642 85.918
  PS R/L     3343466 85.3466
400 w/o/ PS Right     3343641 85.917
  w/o/ PS Left     3343642 85.918
  PS R/L     3342893 85.2893
S40, V40 R/L     3345796 85.5796
7XX, 940, 960 PS Left CAM 83-84 271469 85.1469
  PS, R/L, rack mark: 1359340 CAM 85-88 271469 85.1469
  PS, Right, rack mark: 1229642, 1330136 CAM 83-84 271470 85.1470
  PS, R/L, rack mark: 1387500 CAM 89- 270597 85.0597
  PS, R/L, rack mark: 1359495, 3516940 ZF 89- 270475 85.0475
  PS Left KOYO 93- 271699 85.1699
  PS Right KOYO 93- 271700 85.1700
940, 960, S90, V90     94- 270597 85.0597
850, S70, V70 PS CAM 93- 271601 85.1601
S80 komplete kit   99- 272418 85.2418
  A/T, Turbo   99- 272483 85.2483
Přední náprava 400, všechny modely
Detail O/E Ref. Art. No. Picture
Tie rod end, outer R/L 3270524 (3480012) (3448334) 85.463
Tie rod R/L w/o PS 3410369 85.017
Tie rod R/L with PS 3342824 85.048
Boot kit for tie rod w/o PS, Right 3343641 85.917
Boot kit for tie rod w/o PS, Left 3343642 85.918
Boot kit for tie rod PS 3342893 85.2893
Ball joint lower R/L 34465482 (3410519) 85.789
Stabilizer link Left 3467713 (3416129) 85.6129
Stabilizer link Right 3467714 (3416130) 85.6130
Rubber bushing for wishbone / frame 3411810 85.1810
Front stabilizer rod bushing 3432811 85.2811
Bump stop 3445295 85.5295
Rubber bushing for wishbone / frame
Automatic + Diesel



 3432664 85.2664
Rubber bushing for wishbone / frame
manual + automatic, not diesel		 3120869 85.0869
Rubber cushion, ch. -476833 3432864 85.2864
Rubber cushion / frame 3467815 85.7815
Klouby, manžety 400, všechny modely



Pic. Detail Oe. ref Art. no
1 CV-joint kit all models non Turbo, non ABS 1986~93 3434905 85.4905
1 CV-joint kit all models Turbo non ABS 1988~93 3430396 85.0396
2 CV-joint kit all models ABS non Turbo 1986~93 3433101 85.3101
2 CV-joint kit all models Turbo, ABS 1988~93 3433105 85.3105
3 CV-boot, outer R/L 3410425 85.0425
3 CV-boot, inner R/L 3447721 85.7721
4 Universal CV joint clamp kit. 2 part numbers (large and small size) replaces over a dozen traditional sizes and they look like original equipment.   50.2060.1
All CV-joints complete with boot kit

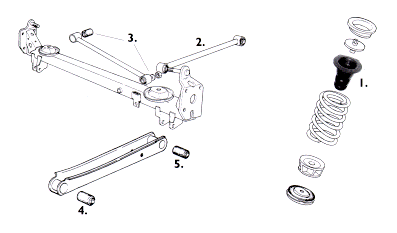

Zadní náprava 400, všechny modely



Pic. Model Detail O/E Ref. Art No.
1 All mod. Damper (Bump Rubber) 3458573 85.8573



2 All mod. Support Bar ABS 3441235 85.1235



All mod. Support Bar w/o ABS 3419861 85.9861
3 All mod. Support Bar Bushing 3461788 85.1788

4 All mod. Support Arm Bushing 3411804 85.1804



5 All mod. Support Arm Bushing 3411805 85.1805



    Bushing for rear anti roll bar 3432009 85.32009
6   Rubber spacer 3410756 85.0756
7   Rubber spacer ch. -2661323417416 3417416 85.7416

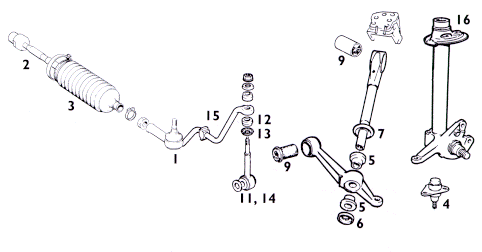

Přední náprava 740, 760, 940, 960

1

2

3

4

5

67

8

9

10

11

1213

14

15


18

16

Pic. Detail O/E Ref. Art. No.
1 Tie rod end outer R/L 3516944 (1205658) 85.348
2 Tie rod inner, 1982~85 R/L CAM outside thread 1273126 85.029
2 Tie rod inner,1985~ R/L ZF outside thread 16 mm 271389 (1387356) 85.034
2 Tie rod inner, 1982~88 R/L CAM outside thread 1359347 85.030
2 Tie rod inner, 1989~ R/L CAM outside thread 14 mm 9140504(1387463) 85.031
2 Tie rod inner, 93-, Koyo Left 6819455 85.9455
2 Tie rod inner, 93-, Koyo Right 6819454 85.9454
3 Boot kit for tie rod CAM left 1983~84, R/L1985~88 271469 85.1469
3 Boot kit for tie rod CAM Right 1983~84 271470 85.1470
3 Boot kit for tie rod R/L CAM 1989~ 270597 85.0597
3 Boot kit for tie rod ZF R/L 1989~ 270475 85.0475
4 Ball joint, lower R/L 270477 (1359590) 85.561
5 Bushing lower control arm R/L 1359599 85.827
5 Reinforced Bushing lower control arm R/L 6819057 85.9057
6 Washer for 85.827, 85.9057 small hole 1359606 85.827S
6 Washer for 85.827, 85.9057 large hole 1359607 85.827L
7 Washer for 85.827, 85.9057 large hole 1359607 85.827L Bolt for 85.827 ~ 85.9057 R/L 949773 85.9773
8 Bushing kit For one side
2x85.827 Bushing
1x85.827L washer
1x85.827S washer
1x949773 bolt
1359599
1359607
1359606
1329612
85.827.1
8 Bushing kit For one side
2x85.9057 Bushing
1x85.827L washer
1x85.827S washer
1x949773 bolt
6819057
1359607
359606
1329612
85.9057.1
9 Rear bushing for lower arm R/L 1329655 85.9655
10 Front bushing for lower control arm R/L 1273235 85.3235
11 Rod new type R/L 9157725 (3530230) 85.902
12 Bushing upper for front stabilizer R/L 1205991 85.829
13 Washer for 85.902 R/L 1229303 85.901W
14 Rod complete with 85.902, 85.829 x 2 and 85.901W x 2   85.902.1
15 Bushing anti-roll bar with dia 19 mm R/L 1229389 85.9389
15 Bushing anti-roll bar with dia 21 mm ²Yellow dot² R/L 1273184 85.3184
16 Spring retainer lower R/L   30.004
  Control arm Left 960, S90, V90 95- 272340 85.2340
  Control arm Right 960, S90, V90 95- 272341 85.2341
18 Stabilizer link 960 9492837 85.2837

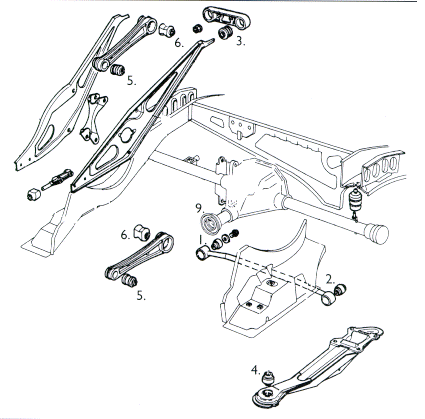

Zadní náprava 740, 760, 940, 960

1

2

3

4

5

6

7

8

Pic. Detail O/E Ref. Art. No.
1 Bushing for crossbar Right 1330427(675807) 85.820
2 Bushing for crossbar Left 1330973(1229715) 85.821
3 Bushing for crossbar R/L 1229873 85.9873
4 Bushing for crossbar R/L 1273628 85.3628
5 Bushing for crossbar front R/L 1229608 85.9608
6 Bushing for crossbar rear R/L 1272306 85.2306
7 900 Bushing for Multilink 1994~ 9140578 85.0578
8 900 Bushing for Multilink Outer 1994~ 9127334 85.7334
9 Oil Seal Rear Axle 120, 140, 160, 240, 740, 760, 900 -95 9143317 (942905) 12.3317
10 Oil Seal Rear Axle 940, 960 95- 9143287 12.3287

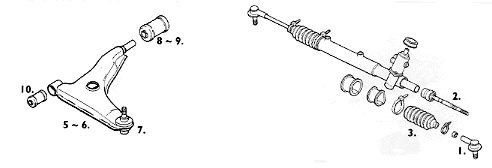

Přední náprava S40, V40, všechny modely

4 11
Pic. Detail O/E Ref. Art No.
1 Tie rod end, outer R/L 30870695 85.0695
2 Tie rod 3345797 85.5797
3 Boot kit R/L 3345796 85.5796
4 Stabilizer link 30884358 (30871770) 85.84358
5 Control arm Left -97
Control arm Left 98-		 30889962
30887028		 85.9962
85.7025
6 Control arm Right -97
Control arm Right 98-		 30889963
30887033		 85.9963
85.7033
7 Ball joint   85.9960
8 Bushing rear left 30872510 85.2510
9 Bushing rear right 30872511 85.2511
10 Bushing for control arm front 30818467 85.8467
11 Bushing centre member / front member 30862412 (30816674) 85.2412

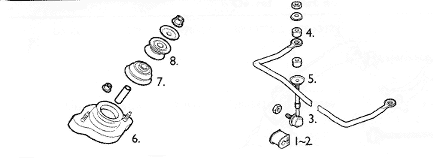

Zadní náprava S40, V40, všechny modely

Pic. Detail O/E Ref. Art No.
1 Bushing rear for anti roll bar, 13mm 30870540 85.0540
2 Bushing rear for anti roll bar, 15mm 30872512 85.2512
3 Rod 30852103 (30871765) 85.2103
4 Bushing for rod 30870317 85.0317
5 Washer for rod 30871764 85.1764
6 Strut mount bracket upper 30818111 85.8111
7 Bushing for bracket Nivomat 30865276 (30824416) 85.5276
8 Bushing for bracket w/o Nivomat 30870376 85.0376
7 Bushing for bracket Nivomat 30824417 85.4417
8 Bushing for bracket w/o Nivomat 30874887 (30870375) 85.4887

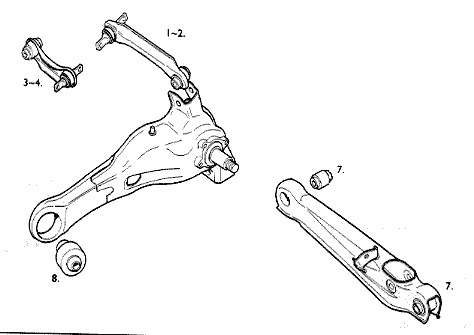

Zadní náprava S40, V40, všechny modely - pokračování

Pic. Detail O/E Ref. Art No.
1 Link / bracket arm Left -97 30818096L 85.18096
2 Link / bracket arm Right -97 30818097R 85.18097
1,2 Link / bracket arm L/R 98-99 30863725L 85.63725
1,2 Link / bracket arm L/R 00- 30884360 85.4360
3 Link / bracket arm Left -97 30818091L 85.18091
4 Link / bracket arm Right -97 30818092R 85.18092
3,4 Link / bracket arm L/R 98-99 30863726 85.63726
3,4 Link / bracket arm Right 00- 30884361 85.84361
7 Bushing for controlarm 30818103 85.18103
8 Bushing for controlarm -99 30871221 85.1221
8 Bushing for controlarm 00- 30851257 85.1257

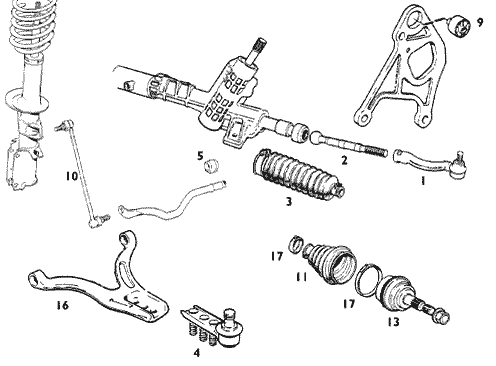

Přední náprava 850, S/V 70

1

2

3

17

4

5

10

9

11

12

16

15
Pic. Detail O/E Ref. Art No.
1 Tie rod end Right 271599 85.1599
1 Tie rod end Left 271598 85.1598
2 Tie rod R/L outside thread 14 mm 3546266 85.6266
3 Boot kit R/L 271601 85.1601
4 Ball joint lower R/L 271591 85.1591
5 Bushing anti-roll bar R/L 3546730 85.6730
6 Bushing for upper support bar 3931159 (6842255) 85.1159
7 Bearing bushing - frame 1pcs/car 3507924 85.7924
8 Bearing bushing - frame 3pcs/car 3507923 85.7923
10 Stabilizer link R/L 1387860 85.7860
9 Upper engine mount (only bushing) for Torque Arm
(O/E Ref. complete arm 9434433 (1236194)		 9434288 85.4288
11 CV Boot Kit, outer R/L 271649 50.1649
12 CV Boot Kit, inner R/L 271650 50.1650
13 CV-Joint outer R/L Turbo for drive shafts 8111307, 8111309, 8601103, 8111310   51.20930
14 CV-Joint outer R/L non Turbo for drive shafts 8111303, 8111304, 8111305, 8111306   51.20931
16 Control Arm Right 271902 85.1902
16 Control Arm Left 271901 85.1901
16 Control Arm Right Diesel 272274 (9492917) 85.72274
16 Control Arm Left Diesel 272273 (9492916) 85.72273
16 Control Arm Right Turbo 272337 85.72337
16 Control Arm Left Turbo 272336 85.72336
15 Bushing for Control Arm 271631 85.71631
17 Universal CV joint clamp kit. 2 part numbers (large and small size) replaces over a dozen traditional sizes and they look like original equipment.   50.2060.1
All CV-joints complete with boot kit

Menu
